DIAFORCE: VBD-M14

Drill Bit Description

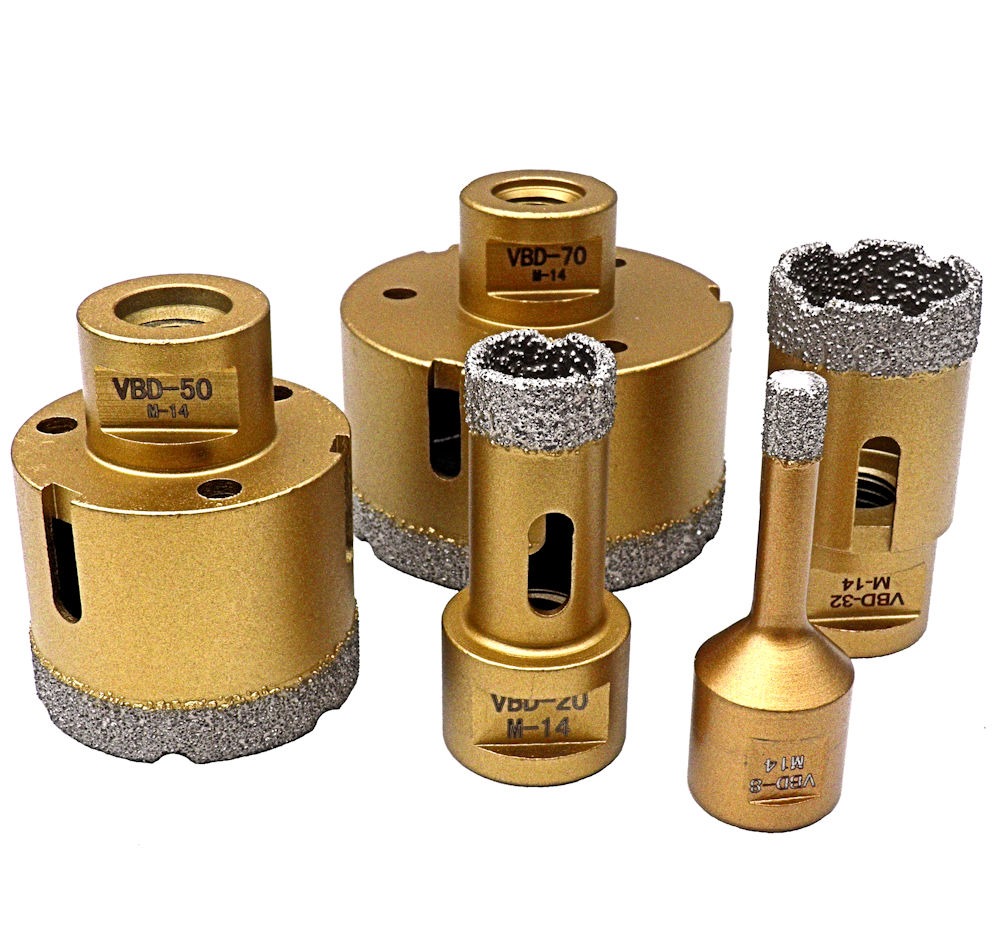

DIAFORCE: VBD Drill Bits have diamond that is directly bonded to the steel blank, giving ultimate strength & durability

  • Vacuum Brazed Diamond Drills
  • Premium Grade 30Grit Diamond Coating
  • 30mm Working Length
  • Hardened Ground Steel Blank
    • Diameter / Fitting
    • 6mm to 105mm = M14 for direct fit onto Angle Grinders

Can also be used with VBD-A adaptor, for use in standard 3-Jaw chucks. (See Vacuum Brazed Drilling Accessories)

More info →





£20.00£95.00

                  APPLICATION / MATERIALS

                            Dry or Wet Drilling

                           Tile Drilling & Stone

For use with Hand-held equipment / Pillar Drills

These Diamond Drill Bits are designed for use on the following Materials

  • Natural Stone Worktops: Granite / Marble / Slate etc
  • Engineered Stone Worktops: Quartz / Caesarstone / Cambria / Concetto / Dekton / Silestone / Icestone etc
  • Epoxy Resin Worktops
  • Ceramic & Porcelain Tiles
  • Porcelain Paving
  • Marble & Travertine
  • Granite & Slate
  • Terrazzo
  • Terracotta
  • Quarry Tiles
  • Clay Pavers & Engineering Brick
  • Indian Sandstone & York Stone
  • High Alumina Refractories
  • Fibre Cement Boarding & Cladding
Diameter (mm)

x35, mm x 25 coat 40Grit, 5, 6mm x 25 coat 40Grit, 6mm x 20 coat 40Grit, 6, 7, 8, 10, 12, 14, 15,16,18, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 35, 36, 38, 40, 42, 45, 48, 50, 52, 56, 60, 62, 65, 65 BT Bit 250L, 70, 75, 76, 78, 82, 88, 90, 91, 92, 102, 105, 107 BT Bit 250L, 107, 110, 112, 115, 117, 122, 125, 127, 132, 142, 150, 152, 158, 162, 165, 172, 178, 180, 184, 200, 212, 225, 230, 250|275|300|325|350|375|400|450|500|550|600, 250 275 300 325 350 375 400 450 500 550 600, 250, 275, 300, 325, 350, 355, 365, 375, 400, 450, 500, 550, 600, 700, 750, 800, 900, 1000, 1200
