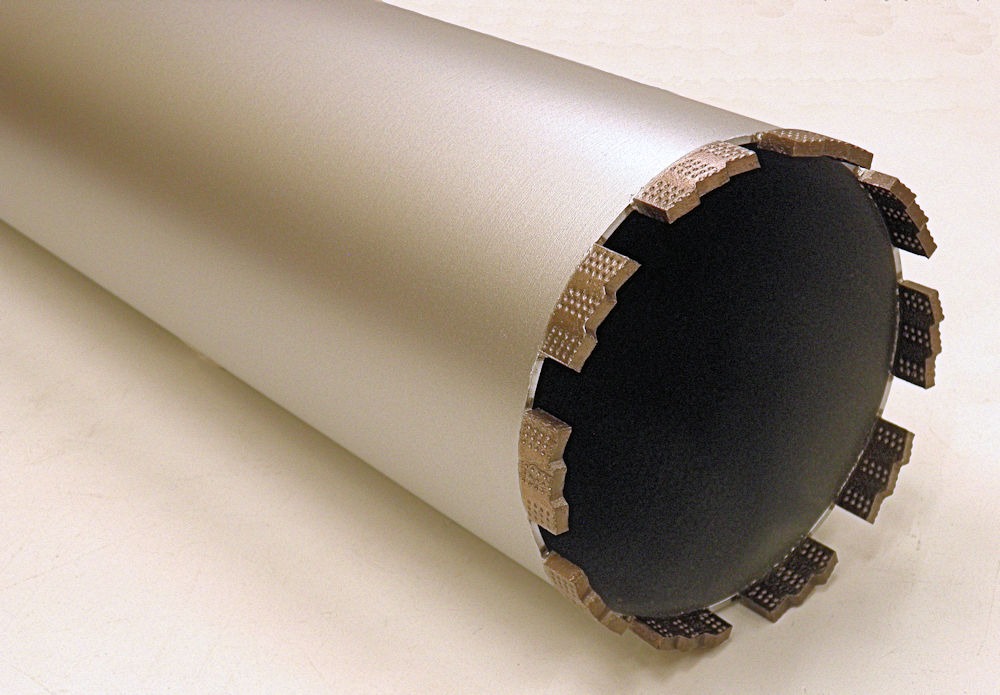

RCB-XL
Core Bit Description
Professional Quality Wet Core Bits
- 12mm High, Laser Welded Segments
- Easy Start Castellated Segments
- High Diamond Concentration
- Balanced Barrel
- Core Bit Back-end Fitting
- 38mm & 40mm = ½” BSP (Male) & 48mm to 300mm = 1¼”UNC (Female)
- Standard working lengths 38mm & 40mm = 300mmL & 48mm to 300mm = 450mmL
£52.00 – £398.00
Materials / Application
For use with Hand-held Equipment, Drill Rigs & Trailer Rigs
These Diamond Core Bits are designed for use on the following Materials
VERY HARD MATERIALS
Clay Pavers, Engineering & Semi Engineering Brick, Clay Roof Tiles
Hard Concrete Pipes/ Slabs/ Kerbs/ Lintels
Hard Cured Concrete, Flint & Quartz Aggregate
Hard Facing Brick
Hard Reinforced Concrete
Hard Stone, Granite / Dense York Stone / Indian Sandstone etc.
Slate
Terrazzo
Very High Alumina Refractory Materials & Acid Resisting Brick
Vitrified & Other Clay Pipes
MEDIUM HARD MATERIALS
Medium Hard Concrete, Quartz & Limestone Aggregate
Medium Facing Brick
Medium Hard Concrete Block 10N/mm2 to 25N/mm2
Medium Hard Concrete Kerbs / Slabs / Pipes / Lintels etc.
Medium Hard Reinforced Concrete
Medium Hard Stone – Bath / Limestone / Portland etc.
Medium-High Alumina Refractory Materials 40-60%
Other Medium Hard Concrete Products
SOFTER ABRASIVE MATERIALS
Asphalt / Tarmac
Concrete Pavers
Reconstituted Stone & Soft Concrete Products
Soft Facing Brick
| Diameter (mm) | 38, 40, 48, 52, 65 BT Bit 250L, 65, 76, 92, 102, 107, 107 BT Bit 250L, 112, 117, 127, 132, 152, 178, 200, 225, 250, 300 |
|---|
